| Film Optical Performance | White Retrofit Film | Grey Retrofit Film |
White Solar Retrofit Film |
||||
|---|---|---|---|---|---|---|---|
| Attribute | OFF | ON | OFF | ON | OFF | ON | |
| Parallel Light Transmittance | 4% | 74% | 2.9% | 48% | 3.2% | 74% | |
| VLT (Total Transmittance) | 67% | 77% | 36% | 50% | 60% | 76% | |
| Haze (ON) | 3.8% | 3.8% | 4.4% (25°C) |
3.6% (80°C) |
|||
| Colour Grade | L | 82.3 | 64.7 | 77.12 | |||
| A | 0.7 | 0.55 | -0.08 | ||||
| B | 7.4 | 8.2 | 8.92 | ||||
| Film Technical Properties | White Retrofit Film | Grey Retrofit Film |
White Solar Retrofit Film |
||||
|---|---|---|---|---|---|---|---|
| Switching Time | 10ms | 10ms | 6ms | ||||
| Lifecycle | 18 million + | 18 million + | 18 million + | ||||
| Operating Temperature | -20 to +70°C | -20 to +70°C | -20 to +90°C | ||||
| Power Consumption | 1-3W/m2 | 1-3W/m2 | 1-3W/m2 | ||||
| Power Consumption | 560µ | 560µ | 505µ | ||||
| Maximum Width (mm) | 1500 | 1500 | 1500 | ||||
| Cut-To-Fit | Custom sizes, shapes, busbar position; holes & notches | Custom sizes, shapes, busbar position; holes & notches | Custom sizes, shapes, busbar position; holes & notches | ||||
| Glass Types | Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, Other | Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, Other | Annealed, Tempered, Clear, Low Iron/Ultra Clear, IG Units, Other | ||||
| Adhesive Type | Dry | Dry | Dry | ||||
| Scratchproof Coating | YES | YES | YES | ||||
| Storage Conditions | -20°C to +60°C. <50% Humidity | -20°C to +60°C. <50% Humidity | -20°C to +60°C. <50% Humidity | ||||
| Grade | Internal | Internal |
Internal (external-facing windows) |
| Electrical Performance | White Retrofit Film | Grey Retrofit Film |
White Solar Retrofit Film |
||||
|---|---|---|---|---|---|---|---|
| Operative Controller Types | Mini, Flex, Multiplex, Custom | Mini, Flex, Multiplex, Custom | Mini, Flex, Multiplex, Custom | ||||
| Operating Modes | Fade, ON/OFF, Dimming | Fade, ON/OFF, Dimming | Fade, ON/OFF, Dimming | ||||
| Operating Voltage | 48-70VAC | 48-70VAC | 48-70VAC | ||||
| Operating Frequency | 25, 32, 50Hz | 25, 32, 50Hz | 25, 32, 50Hz |
| Film Solar Performance | White Solar Retrofit Film | ||||||
|---|---|---|---|---|---|---|---|
| Operative Controller Types | OFF | ON | |||||
| Visible Light Reflection - Interior | 19.83% | 13.4% | |||||
| Visible Light Reflection - Exterior | 22.02% | 14.21% | |||||
| UV Block | 99% | ||||||
| Total Solar Energy Reflection | 29.90% | 29.20% | |||||
| Total Solar Energy Transmittance | 39.1% | 55% | |||||
| Total Solar Energy Absorption | 31% | 15.7% | |||||
| Shading Coefficient | 0.56 | 0.69 | |||||
| G-Value | 0.49 | 0.6 | |||||
| U-Value W/Km2 | 5.88 | ||||||
| ΔT(°C) | Up to 15°C | ||||||

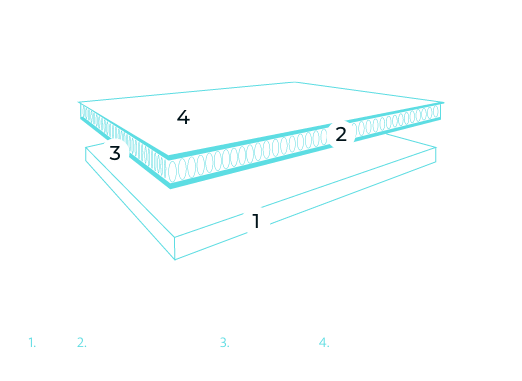

A technologically advanced material, the Retrofit Smart Film product can be applied directly to existing glass windows, offering privacy as needed in a wide range of temperatures and style applications.
Handled exclusively by professional window film installers, this material is designed to provide on-demand transparency or privacy, solar control, and UV protection. A scratch-resistant coating makes the film perfectly suited for internal use.

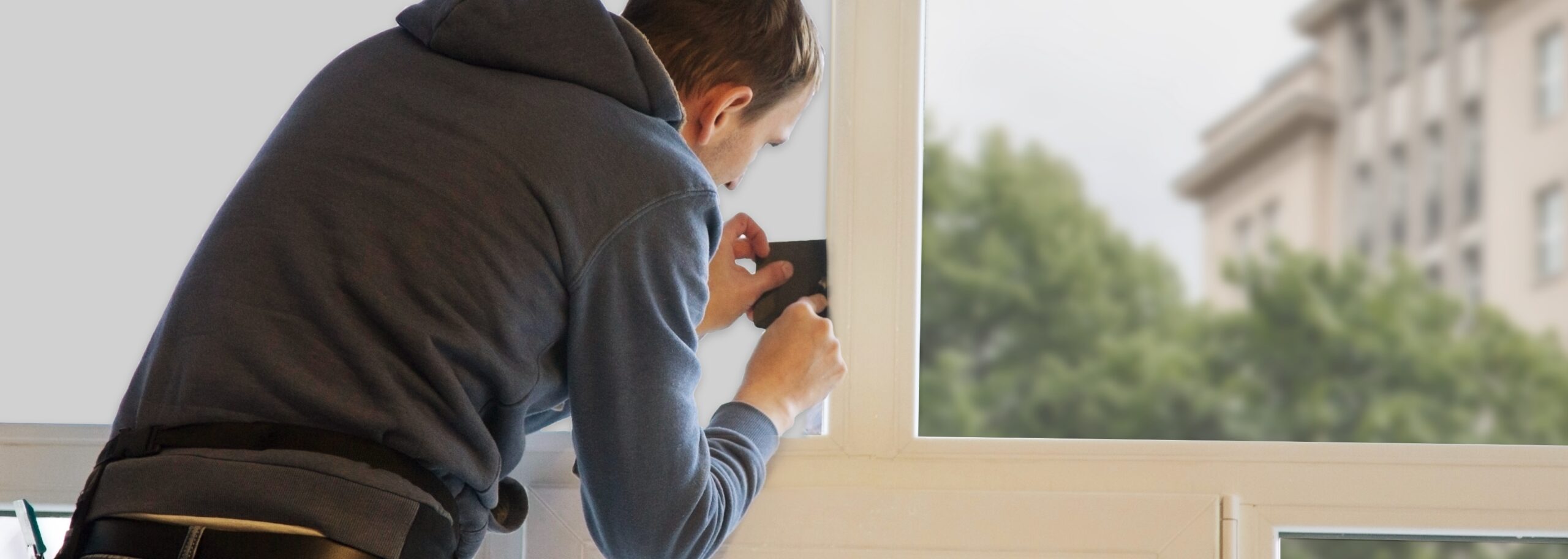

Retrofit Smart Film is applied by professional window film installers onto existing glass panes. The existing glass must be dry for proper installation.
The Retrofit Smart Film can switch between transparent and opaque within 0.1 seconds.
While the Retrofit Smart Film has a scratchproof coating to help defend against external wear and tear, and the solar variation can be applied to external-facing windows, the product itself is not to be applied in an outdoor setting.
Retrofit Smart Film is a film material applied to new or existing glass panels in situ. Privacy Smartglass is a laminated product fully encapsulating the film material and guaranteeing the longevity of your switchable glass solution.
Retrofit Smart Film carries a warranty of 2 years. Other Smartglass laminated glass products carry a warranty of 5 years.
